Description

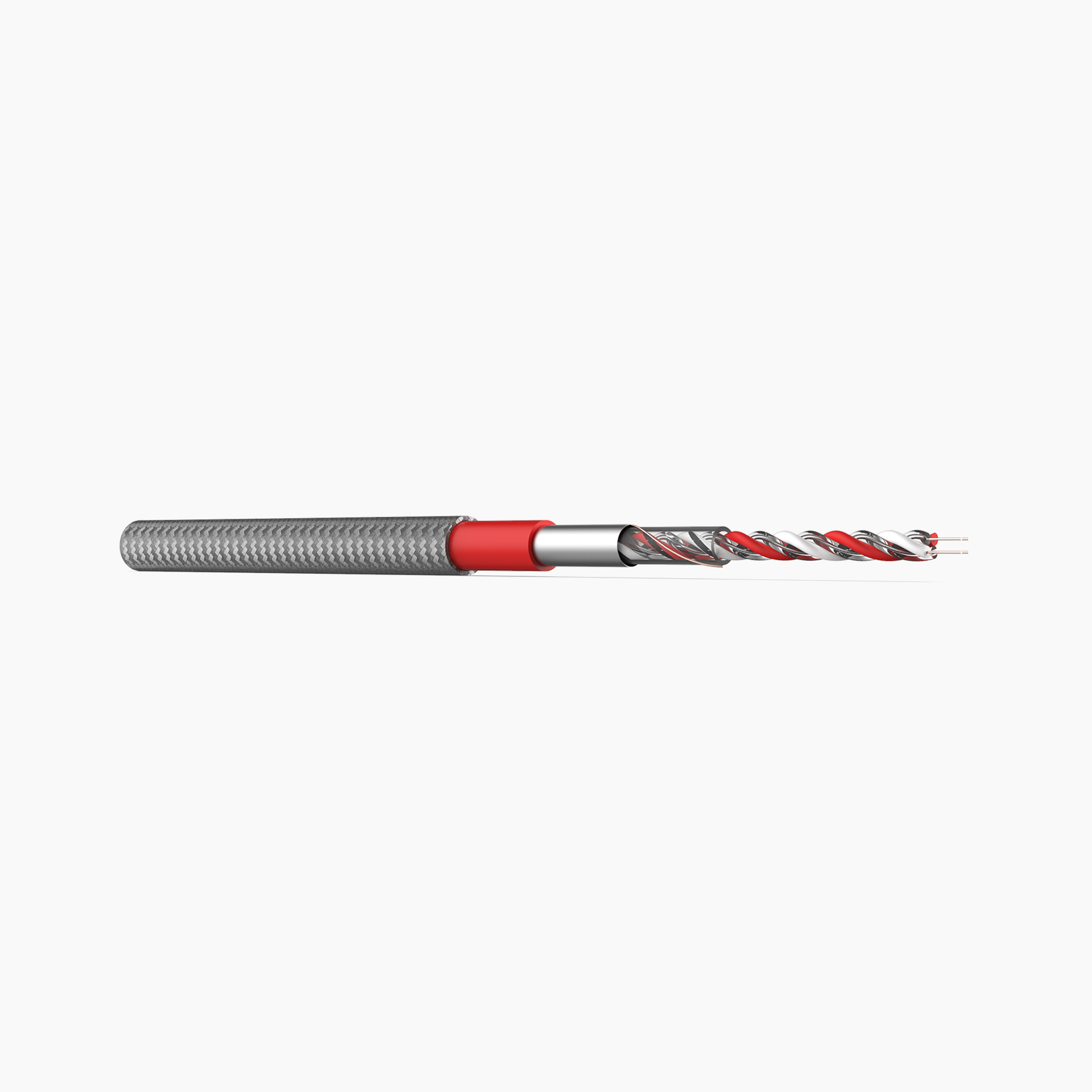

The FyreLine Analogue Stainless Steel Linear Heat Detection (LHD) Cable provides a robust fire detection solution, specifically engineered for environments prone to mechanical damage or abrasion. Its distinctive stainless steel braiding offers superior protection for the sensing elements, making it ideal for hazardous areas requiring precise detection at the point of risk. This self-restorable analogue system is UL 521 approved and compliant with the draft EN54:22 standard.

This system features an optional pre-alarm setting and boasts low installation, maintenance, and repair costs, ensuring an economical and reliable fire safety measure. Internally, the cable comprises copper conductors coated in a temperature-sensitive polymer, whose resistance changes with heat. It also integrates a calibration resistance and an average ambient temperature sensor.

These components are protected by a foil shield and an outer coat designed to minimise RFI susceptibility. The FyreLine analogue cables are CE marked, affirming compliance with relevant directives such as CPR, EMC, and LVD. These comprehensive approvals, alongside UL certification, confirm its suitability for critical safety applications.

Operating across a wide temperature range from -40ºC to 125ºC and available in continuous lengths up to 500m, the FyreLine Analogue Stainless Steel LHD Cable offers a highly durable, flexible, and effective solution for comprehensive linear heat detection.
