Description

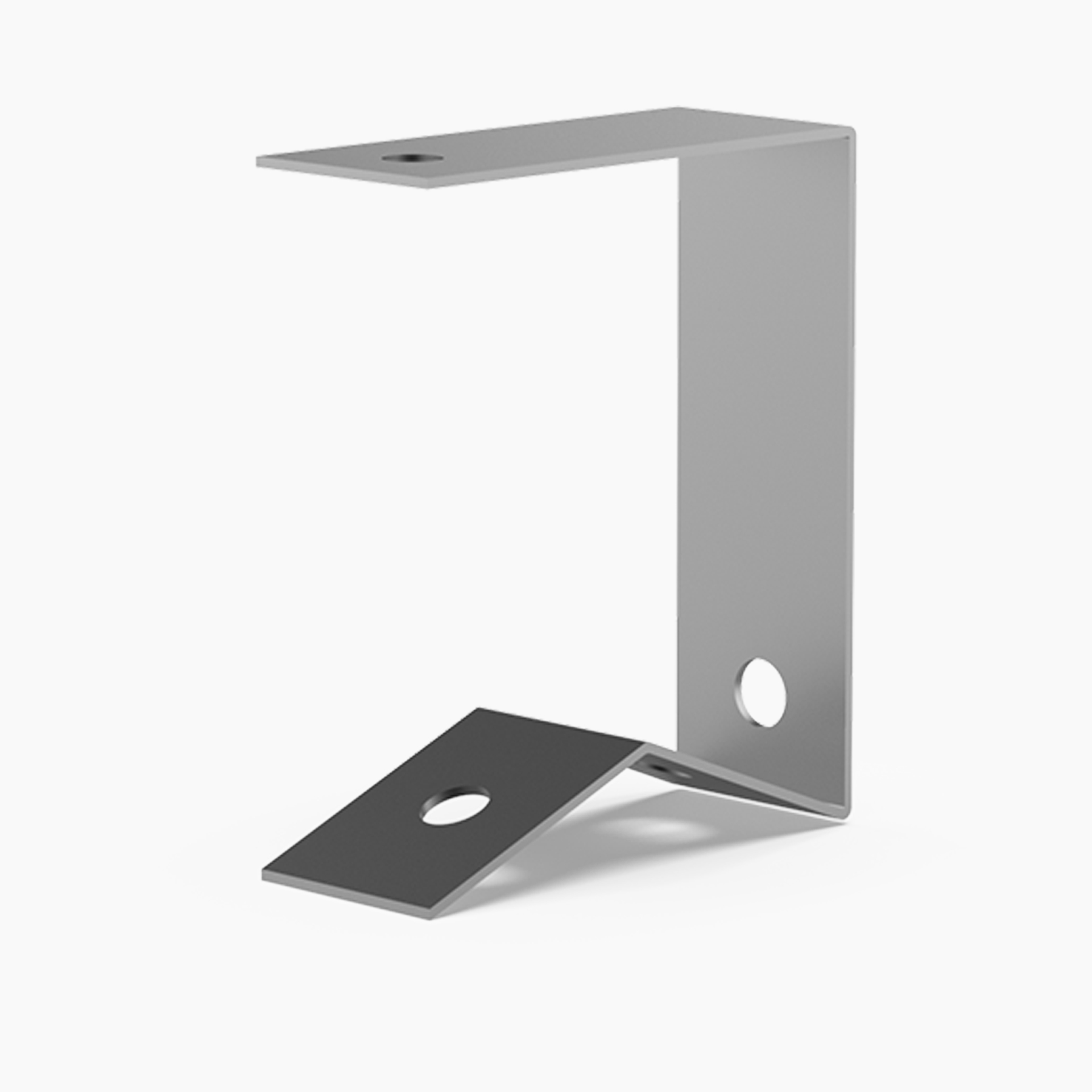

The FyreLine Pipe Bracket is an accessory engineered for FyreLine Linear Heat Detection (LHD) systems, allowing them to integrate with existing pipework within protected environments. Designed for versatility, the bracket can accommodate any pipe size and is easily secured to the pipe’s underside using cable ties or strapping, ensuring quick installation.

The brackets are available in two material types: zintec and stainless steel. Zintec variants are suitable for general indoor and outdoor applications, while the stainless steel option is specifically designed for more challenging environments. This includes areas where the clip may be exposed to harsh chemicals like hydrocarbons, or in caustic conditions, ensuring robust performance.

A key feature of the FyreLine Pipe Bracket is its compliance with BS 5839-1 Section 26.2 Part F. Each pack also includes silicone sleeves, which are essential for insulating and protecting the LHD cable. These sleeves guard against abrasion, excessive pressure, and prevent heat transfer from the metal bracket to the cable, thus maintaining the cable’s operational integrity.

With compact dimensions of 20mm x 60mm x 50mm and weighing 34g, these brackets are discreet yet effective. They are supplied in packs of 100, with distinct part numbers for the zintec (18-306) and stainless steel (18-316) options, available directly from Eurofyre.
