ProFyre Addressable Manual Call Point
ProFyre Addressable Manual Call Point
POA
- EN54-11 Approved
- Glass appearance maintains operator deterrence
- Positive activation that mimics the feel of breaking glass
- Visible warning flag and LED confirms activation
- Simple key to reset operating element – no broken glass
Learn about the ProFyre Addressable Manual Call Points in the
Eurofyre Knowledge BaseLearn about the ProFyre Addressable Manual Call Points in the
Knowledge BaseDescription

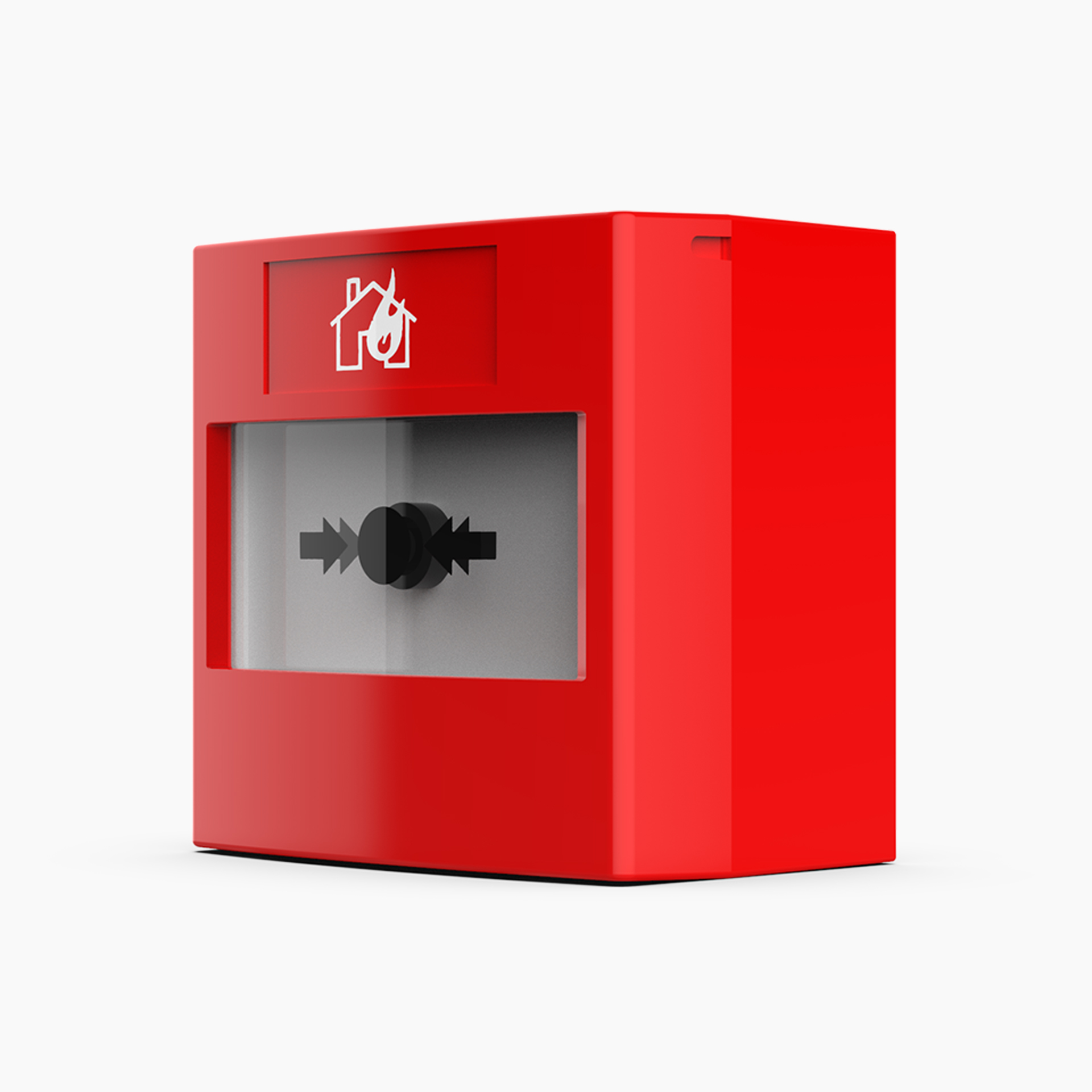

The ProFyre Addressable Manual Call Point is a unique fire alarm device designed to mimic the feel of breaking glass during activation, while providing the practical benefits of a resettable operating element. Its patented mechanism, comprising a rigid plastic element and an over-centre spring, delivers a realistic tactile response for the user. Activation is clearly confirmed by a visible warning flag and an LED indicator.
Once operated, this innovative call point can be easily reset with a simple key, removing the need for glass replacement and enabling immediate re-use. This feature makes it particularly suitable for indoor areas where traditional glass models are problematic, such as food processing plants and leisure centres.
Furthermore, a waterproof version of the ProFyre manual call point offers a robust solution for demanding outdoor applications. This includes environments like oil rigs, ships, factories, and wash-down areas, where broken glass could pose environmental or safety issues.
These addressable manual call points are fully compatible with Eurofyre’s analogue addressable ProFyre A4, A2, and T8 2-wire fire alarm systems. They hold comprehensive approvals, including LPCB certification for safe use and installation across European Union countries, bearing the CE mark. The device complies with EN 54-11:2001 + A1:2005 for manual call points and EN 54-17:2005 for short-circuit isolators.
Additional information
| Application | Agricultural, Commercial, Education, Government, Healthcare, Heritage, Hospitality, Industrial, Information Technology, Leisure, Office, Public Buildings, Residential, Retail, Transport |
|---|---|
| Approval Body | LPCB |
| Brand | |
| Cable Entries | 2, 3 |
| Colour | Red |
| Country of Origin | United Kingdom |
| Environment | Indoors, Outdoors |
| HS Code | 8531103000 |
| Input Voltage | 24VDC |
| IP Rating | IP32, IP67 |
| Mounting | Semi-flush, Surface |
| Product | Wired Manual Call Point |
| Protocol | Open Protocol |
| Short Circuit Isolator | Yes |
| Standards | EN54-11 |
| System | Fire Detection |
| System Category | Addressable |
| System Protocol | Zeta MKII |
| Wiring | Loop, Radial |
| Unit | Piece |
| Indication | LED |
