SenTRI Single Output Module
SenTRI Single Output Module
POA

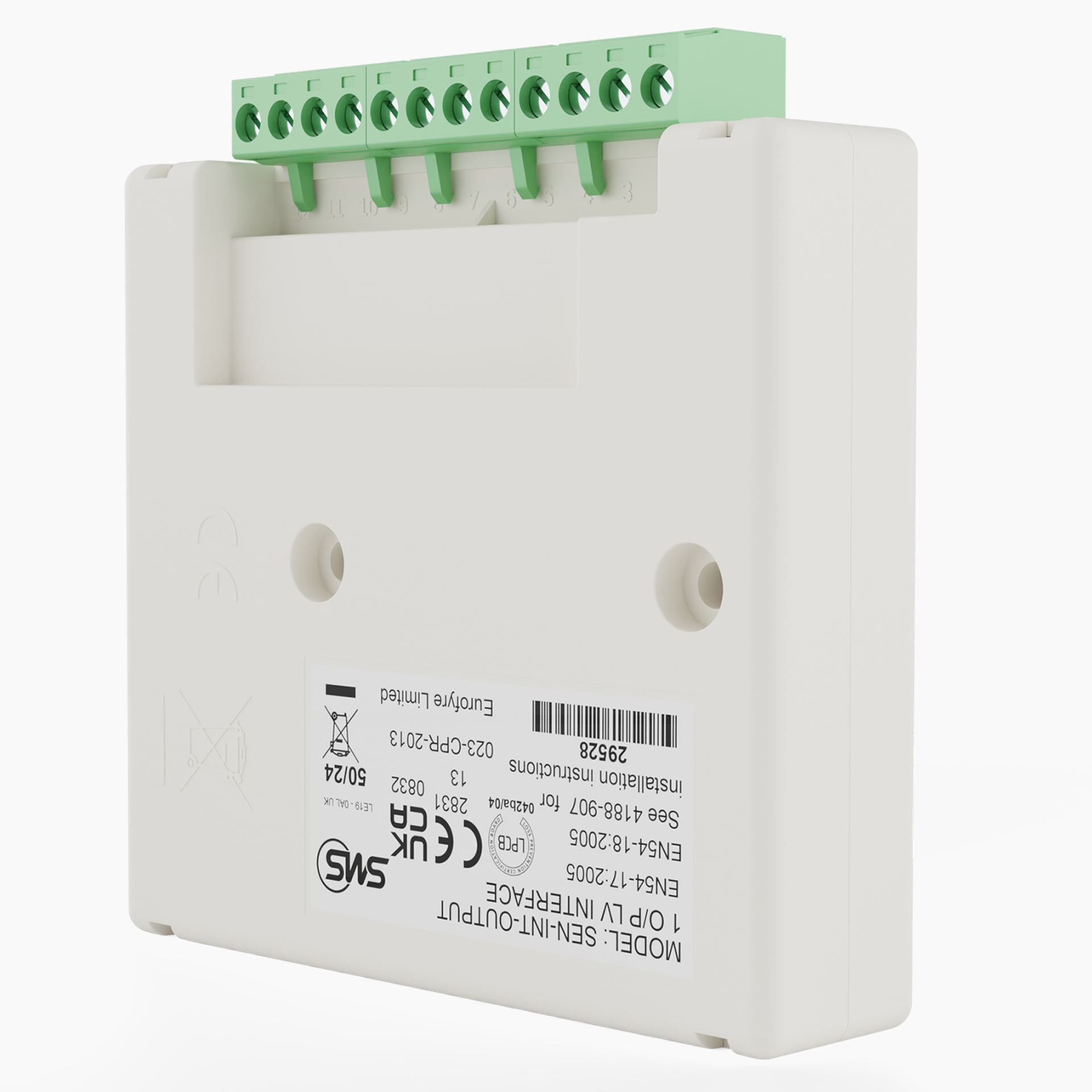

SenTRI Single Output Module
- Single, independently controllable output
- Volt-free changeover relay for external device control
- Built-in short-circuit isolator
- Addressable for precise system integration
- Compact design for easy installation
Learn about the SenTRI Single Output Module in the
Eurofyre Knowledge Base
Learn about the SenTRI Single Output Module in the
Knowledge BaseDescription
The SenTRI Single Output Module, available from Eurofyre, is a compact addressable interface designed for use with the SMS SenTRI fire detection system. It provides a single, independently controllable output for activating a variety of external devices.
A key feature of the module is its volt-free changeover relay, enabling integration with third-party equipment such as automatic door closers, smoke vents, and building management systems, which allows the implementation of important actions during a fire. The device includes a built-in short-circuit isolator, improving system resilience and easing fault finding on the SenTRI loop.
The module’s specifications include an operating temperature range of -10°C to +60°C and a weight of 100g. It meets the EN54-17 and EN54-18 standards and is LPCB approved.
The SenTRI Single Output Module is compatible with specific versions of the SenTRI system’s Loop and Main Control Card and supports a certain number of inputs and outputs per loop. It has an ingress protection rating of IP31 when used with the SEN-490 plastic box and an estimated IP40 with the SEN-492 metal box.
Additional information
| Dimensions | 16 × 16 × 16 cm |
|---|---|
| Application | Agricultural, Commercial, Education, Government, Healthcare, Heritage, Hospitality, Industrial, Information Technology, Leisure, Office, Public Buildings, Residential, Retail, Transport |
| Approval Body | LPCB |
| Brand | |
| Colour | White |
| Country of Origin | Romania |
| Environment | Indoors |
| HS Code | 85371098 |
| Input Voltage | 42VDC |
| IP Rating | IP31 |
| Mounting | Surface |
| Product | Wired Interface |
| Protocol | Managed Protocol |
| Short Circuit Isolator | Yes |
| Standards | EN54-17, EN54-18 |
| System | Fire Detection |
| System Category | Addressable |
| System Protocol | SenTRI |
| Wiring | Loop |
| Relays | 1 |
| Unit | Piece |
| Indication | LED |
