SenTRI Sounder VAD
SenTRI Sounder VAD
POA
- EN54-23 compliant Visual Alarm Device (VAD)
- Fully loop-powered operation
- Available in standard or enhanced protection versions
- HandiLink remote control for secure volume adjustment
- Aids compliance with Equality Act 2010 (DDA)
Learn about the SenTRI Sounder VAD in the
Eurofyre Knowledge BaseLearn about the SenTRI Sounder VAD in the
Knowledge BaseDescription

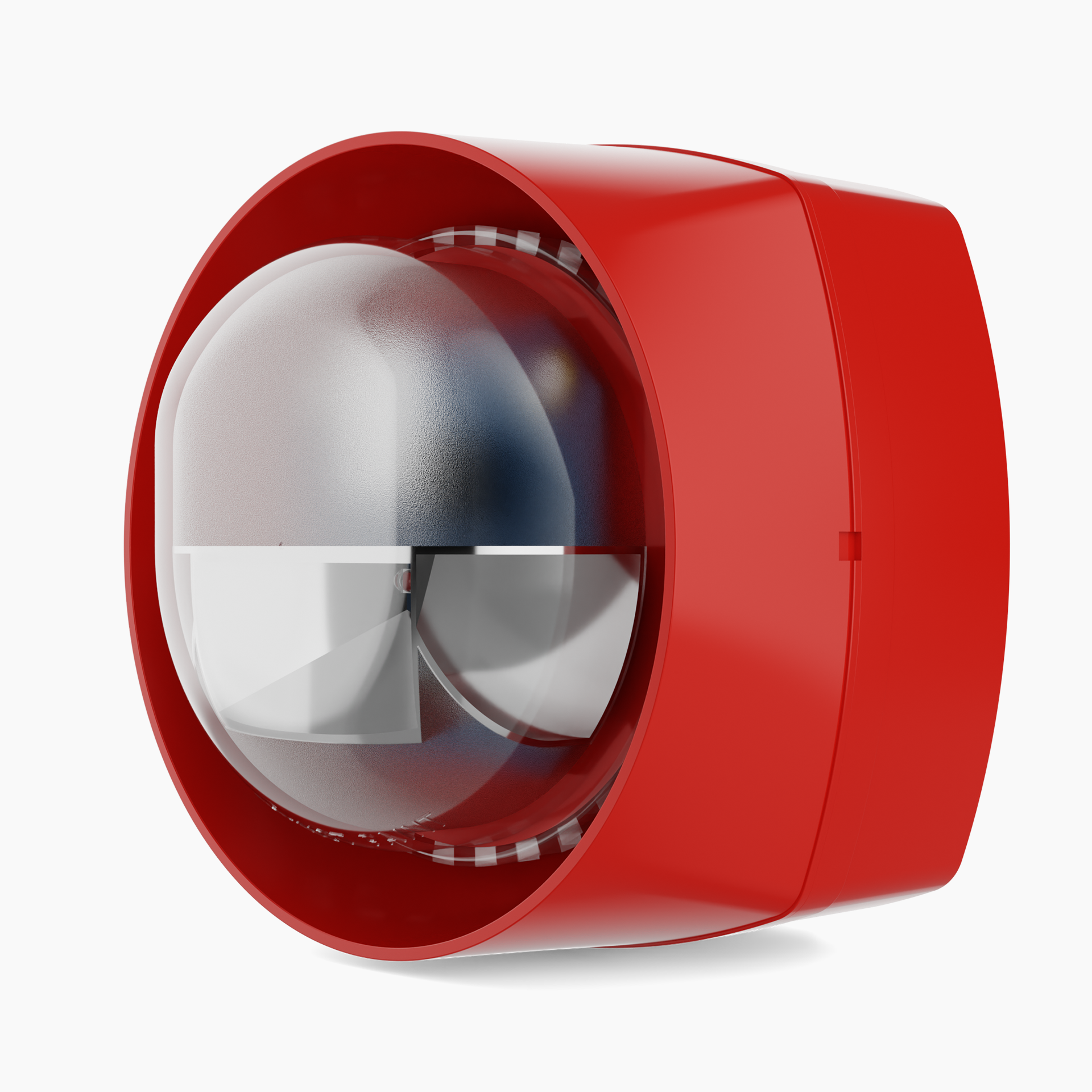

The SenTRI Sounder VAD, offered by Eurofyre, is an addressable notification device for fire detection systems. It combines audible and visual alerts in a single, loop-powered unit, suitable for environments where hearing may be impaired or background noise is high. The device is EN54-23 compliant, meaning it adheres to European standards for visual alarm devices. This compliance ensures it meets the necessary safety and performance criteria.
Available as wall-mounted units, the SenTRI Sounder VAD comes with a choice of either a red or white flash. Furthermore, it is offered with either a standard IP21 rating or an enhanced IP66 rating, known as the EP variant, which is designed for more demanding environmental conditions. The IP ratings refer to the level of protection against dust and water ingress, with IP66 offering greater protection.
A key feature of the SenTRI Sounder VAD is its loop-powered operation, which simplifies the installation process. Additionally, the HandiLink infrared remote control allows for secure volume adjustment without needing direct access to the device. This feature is password-protected at the control panel to prevent any unauthorised modifications.
The device is designed to aid compliance with the Equality Act 2010 (DDA), ensuring accessibility for all occupants. Technical specifications include a sound output of 103 dB(A) at 1 metre and a VAD flash frequency of 0.5Hz. The product is available in various models, differing in power, flash colour, and part number, with pricing available upon request from Eurofyre.
Additional information
| Dimensions | 16 × 16 × 16 cm |
|---|---|
| HS Code | 85319000, 85318070 |
| Application | Agricultural, Commercial, Education, Government, Healthcare, Heritage, Hospitality, Industrial, Information Technology, Leisure, Office, Public Buildings, Residential, Retail, Transport |
| Approval Body | LPCB |
| Brand | |
| Cable Entries | 4 |
| Colour | Red, White |
| Country of Origin | Romania |
| Environment | Indoors |
| Input Voltage | 42VDC |
| IP Rating | IP21 |
| Material | ABS, Polycarbonate |
| Mounting | Surface |
| Product | Wired Sounder, Wired VAD |
| Protocol | Managed Protocol |
| Short Circuit Isolator | Yes |
| Sound Output | 103dBA |
| Standards | EN54-17, EN54-23, EN54-3 |
| System | Fire Detection |
| System Category | Addressable |
| System Protocol | SenTRI |
| VAD Classification | Ceiling Mounted, Wall Mounted |
| Wiring | Loop |
| Unit | Piece |
| Flash Colour | Red Flash, White Flash |
| VAD Power | High, Low |
