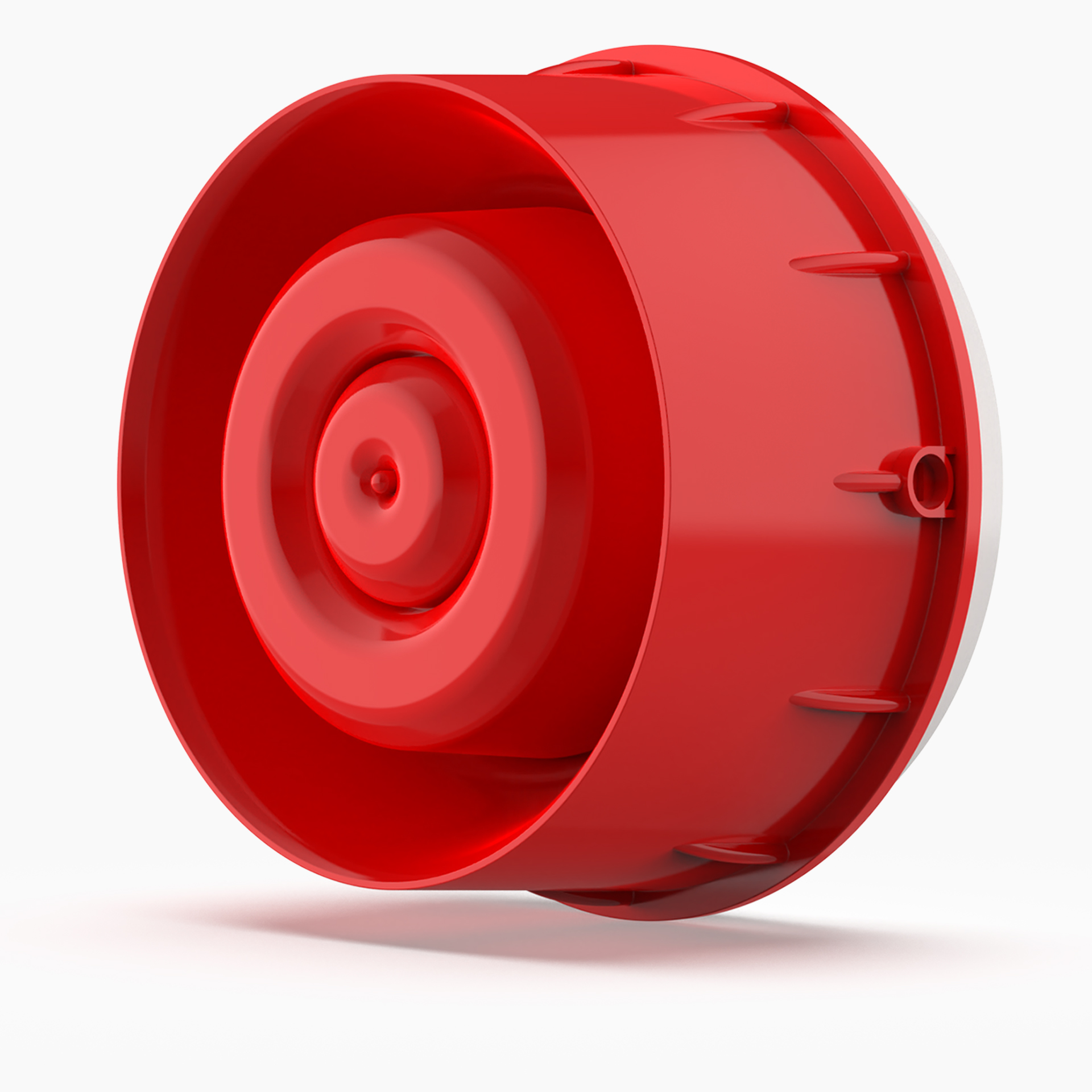

Morley-IAS Addressable Sounder
Morley-IAS Addressable Sounder
POA
- 32 tone options
- Anti-tamper features
- Controllable sound output, tone selection and group polling
- Large cable access with rear/surface cable entries
- Low profile, surface or high IP mounting options
Learn about the Morley-IAS Addressable Sounder in the
Eurofyre Knowledge Base
Learn about the Morley-IAS Addressable Sounder in the
Knowledge BaseDescription
The Morley-IAS Addressable Sounder is a loop-powered device designed for emergency alerts in buildings. Powered by the fire panel via loop wiring, it offers simplified system integration and flexible twist-fit installation onto a B501AP base. Control is achieved via onboard switches or a fire panel using the Morley-IAS Advanced Protocol. Key features include 32 tone options, controllable sound output, group polling, anti-tamper mechanisms, large cable access, and versatile mounting options.
Technically, these sounders operate on 15 to 32VDC, providing a powerful maximum output of 97dB(A) at 1 metre. They function reliably from -25°C to 70°C and boast varying ingress protection ratings for low profile (IP24), surface mount (IP44), and waterproof (IP65) bases. Available in red or pure white, they are adaptable for diverse environmental and installation requirements.
Eurofyre, an authorised Honeywell distributor, fully supports the Morley-IAS product line. They provide expert advice and comprehensive support for fire detection systems, encompassing both pre-sales guidance and after-sales services.
Additional information
| Weight | 2.7 kg |
|---|---|
| Dimensions | 22 × 22 × 22 cm |
| Application | Agricultural, Commercial, Education, Government, Healthcare, Heritage, Hospitality, Industrial, Information Technology, Leisure, Office, Public Buildings, Residential, Retail, Transport |
| Additions | None, Base |
| Approval Body | LPCB, VdS |
| Brand | |
| Colour | Red, White |
| Country of Origin | Romania |
| Environment | Indoors |
| HS Code | 85318070 |
| Input Voltage | 24VDC |
| IP Rating | IP24, IP44, IP65 |
| Material | ABS, Polycarbonate |
| Mounting | Surface |
| Product | Wired Sounder |
| Protocol | Open Protocol |
| Short Circuit Isolator | No, Yes |
| Sound Output | 97dBA |
| Standards | EN54-17, EN54-3 |
| System | Fire Detection |
| System Category | Addressable |
| System Protocol | Morley-IAS Advanced |
| Wiring | Loop |
| Unit | Piece |
| Indication | LED |
