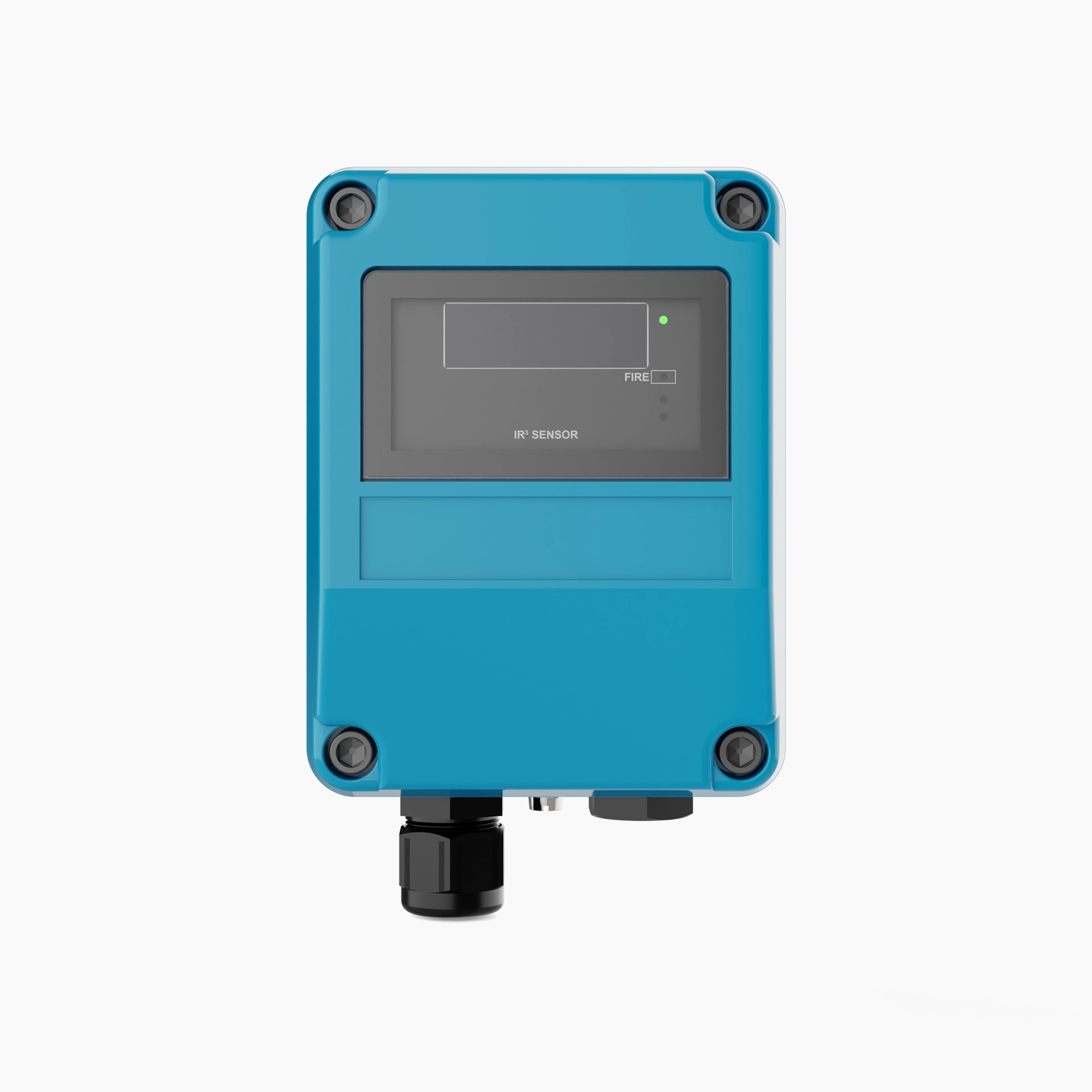

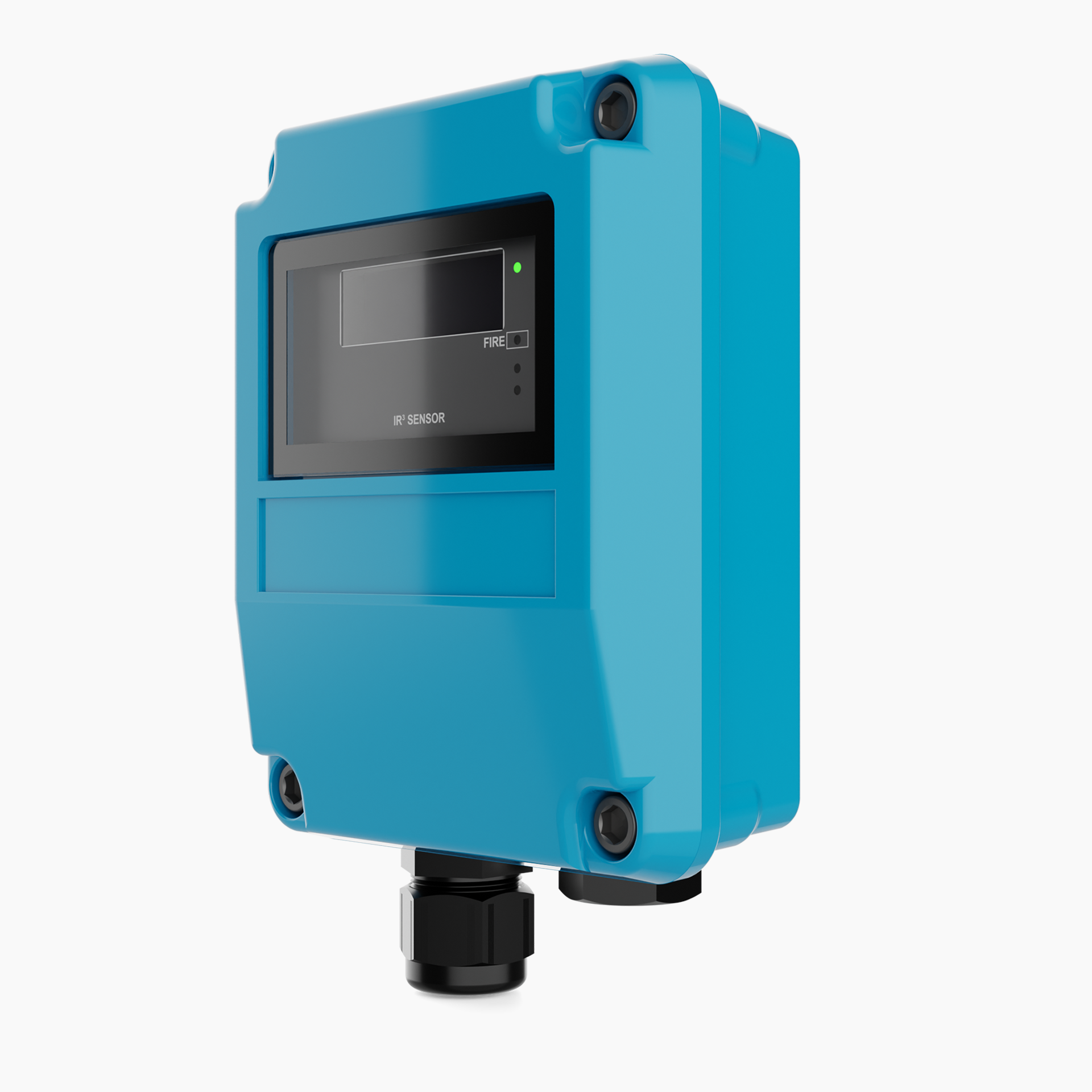

Talentum IR3 Flame Detector
Talentum IR3 Flame Detector
POA
- Triple IR flame detection
- Works through smoke, vapour and dust
- High immunity to false alarms
- Remote and automatic self-test
- Flexible output and response settings
Learn about the Talentum IR3 Flame Detector in the
Eurofyre Knowledge Base
Learn about the Talentum IR3 Flame Detector in the
Knowledge BaseDescription
The Talentum IR3 Flame Detector utilises triple infrared sensing for fast, accurate open flame detection. It is engineered to reliably sense low-frequency infrared radiation, which accurately distinguishes real fires from other heat sources. Its robust design provides high immunity to false alarms, even in the presence of smoke, dust, vapour, or water contamination on the lens. The detector features remote and automatic self-test capabilities and offers flexible output and response settings for integration into various fire and process control systems. It is approved to recognized standards, including EN54-10, and is suitable for both indoor and outdoor industrial and commercial applications.
Additional information
| Weight | 11 kg |
|---|---|
| Dimensions | 46 × 31 × 31 cm |
| Brand | |
| Application | Agricultural, Commercial, Education, Government, Healthcare, Heritage, Hospitality, Industrial, Information Technology, Leisure, Office, Public Buildings, Residential, Retail, Transport |
| Cable Entries | 2 |
| Approval Body | CE, EN, FM, LPCB |
| Country of Origin | United Kingdom |
| Field of View | 90° |
| Input Voltage | 30VDC |
| IP Rating | IP65 |
| Material | Die Cast Zinc Alloy |
| Colour | Blue |
| Mounting | Surface |
| Environment | Indoors, Outdoors |
| Product | Flame Detector |
| Protocol | Open Protocol |
| Sensor | IR |
| Standards | EN54-10 |
| System | Flame Detection |
| Relays | 2 |
| Detection Architecture | Independent |
| Unit | Piece |
| Indication | LED |
