Key Features
- Four configurable input or output channels
- 16 A 230 V AC or 5 A 30 V DC relay rating per channel
- Loop powered for simple installation
- EN54-17 and EN54-18 compliant
- Supplied with durable mounting box for secure fitting
Overview

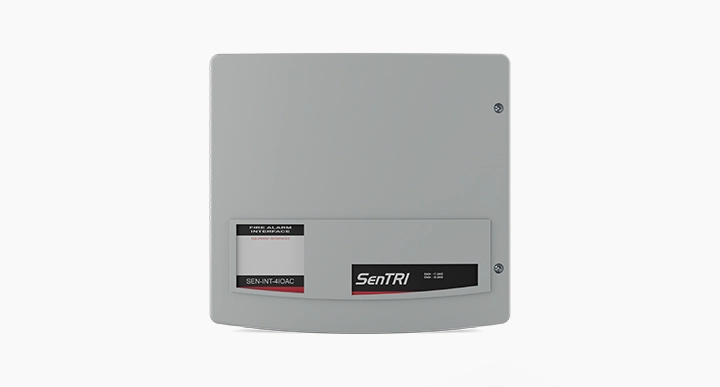

The SenTRI 4-Way Mains Rated Input/Output Module with Mounting Box is an addressable interface designed for use with SenTRI fire alarm systems. It provides four programmable channels, each configurable as an input, output or combined input/output for flexible system control.
Each relay is rated at 16 A 230 V AC or 5 A 30 V DC, allowing safe switching of mains-powered equipment such as fans, door releases or fire suppression interfaces. The unit is loop-powered and housed in a robust, flame-retardant ABS enclosure supplied with a mounting box for secure installation.
The module complies with EN54-17 and EN54-18 standards and is ideal for linking fire panels to external plant, HVAC systems or alarms that require reliable, high-capacity interfacing.
Turntable
Approvals
Tech Specs
| Operating Voltage | 35V – 48V |
| Modes Of Operation | InputOutputInput and OutputInput with Confirmation OutputOutput with Confirmation Input |
| Input(S) | Input Can Be Normally Open or Normally Closed Switch |
| Output(S)Relay Contact Rating | Single Pole Change Over Contacts Rated16A 230V AC / 5A 30V DC – Resistive Load |
| Load Factor | 5 (Maximum 200 Devices Per Loop) |
| Ingress Protection | Ip30 (Estimated) |
| Relative Humidity(Non Condensing) | Up to 95%Temperature +5°C to +40°C |
| Ambient OperatingTemperature | -5°C to +40°C |
| Storage Temperature | -20°C to +70°C |
| Weight | 1.1Kg (approximate) |
| Enclosure | ABS V-O Rated |
| Overall Dimensions (W X D X H) | 245 x 77 x 227mm |
| Panel Compatibility | Compatible with Loop = V4.35 and Main Control Card = V4.37 |
| Standards | EN54-17 and EN54-18 |
| Approvals | LPCB Approved |
