Key Features
- Up to 1800 metre open air coverage
- Supports network expansion to 35km²
- Remote monitoring and configuration through Ajax apps
- Backup batteries for continued operation
- Available in black or white to suit different interiors
Overview

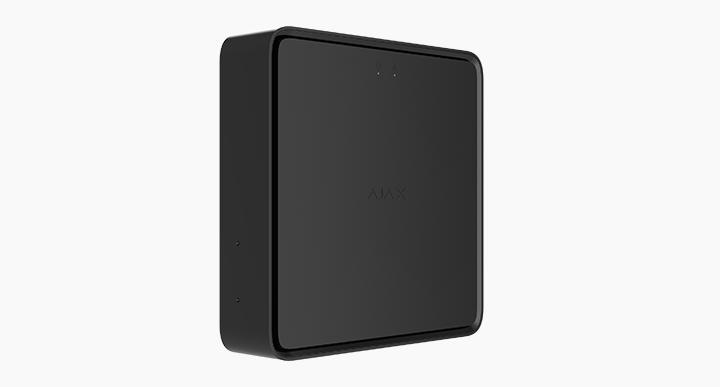

The Ajax EN54 Fire ReX Jeweller is a wireless range extender that increases the coverage of Ajax fire systems. It receives signals from detectors and control panels, then forwards them to extend communication across larger buildings. It keeps the system stable by monitoring signal quality and switching channels when interference appears.
Large Area Coverage
ReX EN54 offers up to 1,800 metres of open air coverage. You can add multiple extenders to widen the protected area. A network of extenders can increase system coverage to as much as 35km², which supports projects with large or complex layouts.

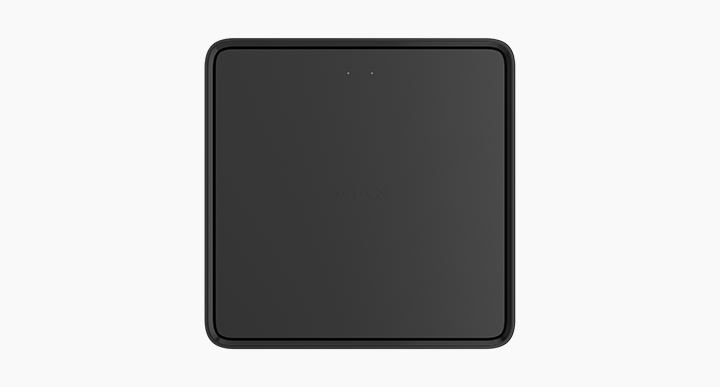

Sleek Design
The AJAX EN54 Fire ReX Jeweller has a compact enclosure with a clean, modern finish. It is available in black or white, which helps it blend with different interior styles. The design supports discreet installation in commercial and residential settings.
Remote Configuration
The AJAX EN54 Fire ReX Jeweller can be monitored and configured through the Ajax apps. Installers can adjust settings, view status information and run tests without visiting the device. This remote functionality supports quicker setup and easier maintenance.
Battery Capacity
ReX EN54 includes built-in backup batteries that keep it running if the main power supply fails. This helps maintain communication across the system during outages.
Installation recommendations
ReX EN54 is for indoor use. You should use a GlandBox when power and signal cables do not run inside the wall, which gives the device suitable protection and strain relief.
Approvals
ReX EN54 meets relevant EN54 fire detection and alarm standards. These approvals confirm its performance for fire system communication and its suitability for fire protection projects in regulated environments.
Tech Specs
| Number of EN54 Fire ReX Jeweller connected to the hub | Up to 5 |
| Number of devices connected to EN54 Fire ReX Jeweller | Up to 199 |
| Communication technology | Jeweller Wings |
| Frequency bands | Jeweller: 866.0–866.5 MHz868.0–868.6 MHz868.7–869.2 MHz905.0–926.5 MHz915.85–926.5 MHz921.0–922.0 MHz Wings: 866.0–866.5 MHz868.0–868.6 MHz868.7–869.2 MHz905.0–926.5 MHz915.85–926.5 MHz921.0–922.0 MHz |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,800 mup to 5,900 ft |
| Encrypted Communication | All stored and transmitted data are protected by block encryption featuring a dynamic key. |
| Frequency hopping | To prevent radio interference and jamming. |
| Ethernet | 1 8P8C socket Up to 100 Mbps. |
| Alarm response time to the CIE | 0.3 s |
| Photo response time to the CIE | 18 s via Wings Channel10 s via Ethernet Channel |
| LED indication | Green: for power supply status. Yellow: for device faults. |

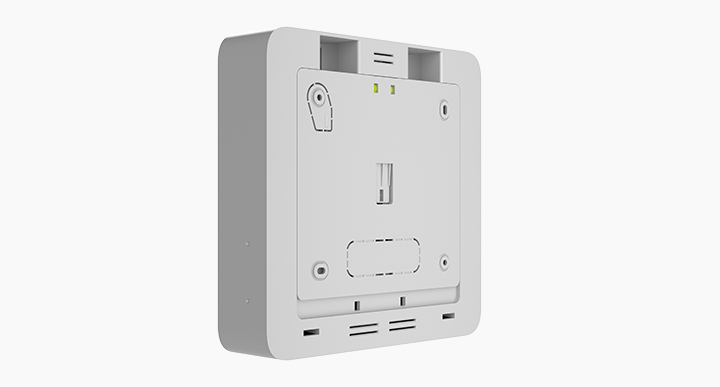

| Special tool (key) | The special tool is used to unlock the housing and replace the internal battery or dismantle the device from the SmartBracket mounting panel. The battery is not included in the range extender complete set. |
| Operating voltage | 110–240 V~. |
| Sabotage protection | 2 Tamper Buttons Protection against spoofing Connection loss detection after 36 s |

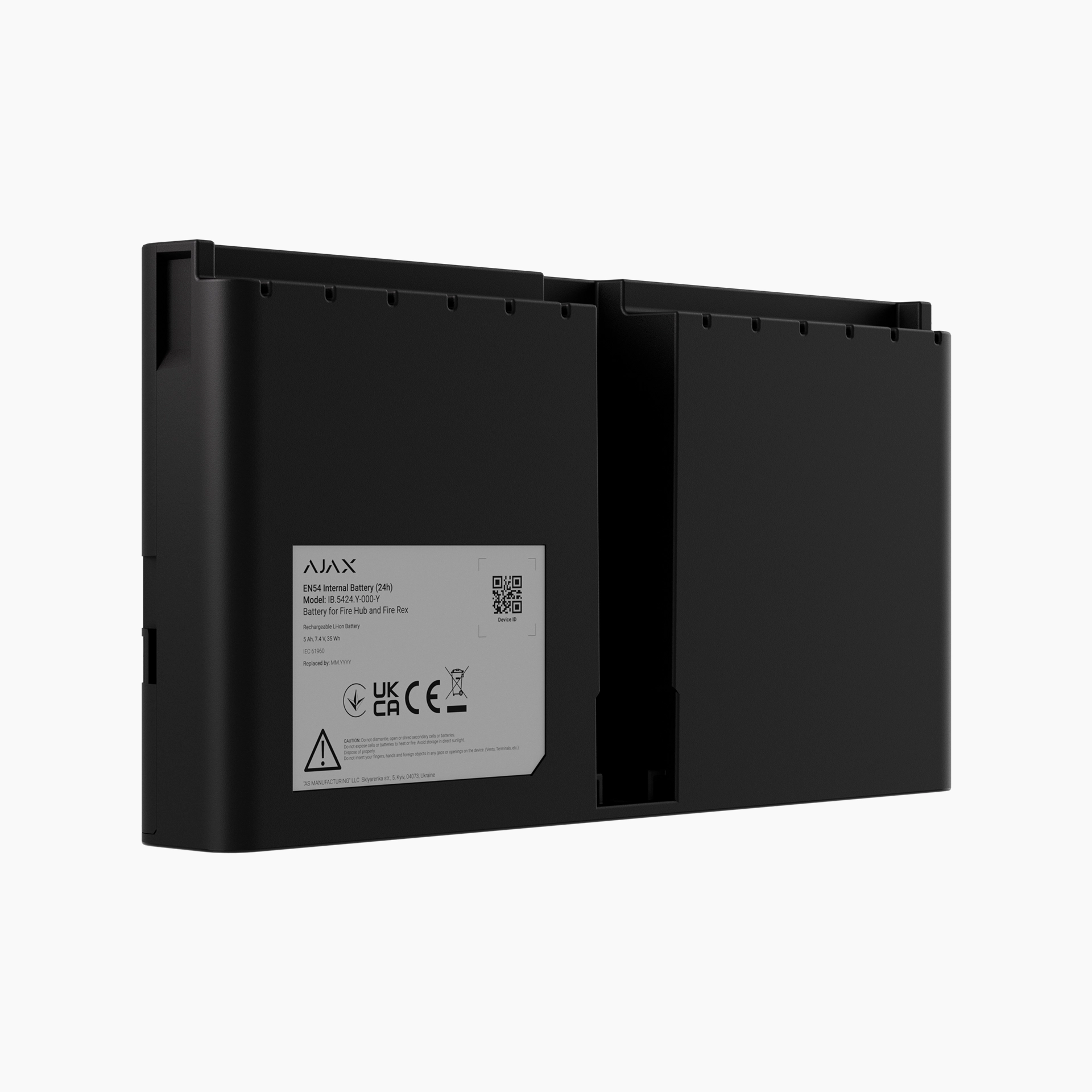

| Internal | 7.4 V⎓, 5 Ah/10 Ah On Rechargeable Li-ion battery not included in the complete set: EN54 Internal Battery (24h) or EN54 Internal Battery (72h) |
| External | 110–240 V, 50/60 Hz Up to 0.48 A of mains power consumption. |
| Autonomous operation | On internal battery Up to 24 hours: When Ethernet is enabled. On EN54 Internal Battery (24h) not included in the complete set. Up to 72 hours: When Ethernet is enabled. On EN54 Internal Battery (72h) not included in the complete set. |
| Dimensions ( W x H x D) | 210 × 210 × 51 mm |
| Weight | 698 g |
| Operating temperature | from -10 °C to +40 °C |
| Operating humidity | 75% non-condensing |
| IP rating | IP20 |
| Flammability rating | UL 94 V-0 |
| Colour | Black White |
| Complete set | EN54 Fire ReX Jeweller SmartBracket mounting panel Installation kit Ethernet cable Special tool (key) Quick start guide |
| Revision | 1 |
| Warranty | 24 months |
