Key Features
- Built-in Jeweller Communication
- Two built-in thermistors
- Selectable or fixed detector modes
- Connection and configuration via AJAX app
- Full device addressability
Overview
The EN54 FireProtect (Heat) Jeweller features a high-precision dual thermistor system that accurately detects both rapid temperature spikes and fixed heat thresholds.
This sleek, maintenance free device is engineered for maximum reliability, ensuring instant alarm triggering while preventing false alerts in demanding conditions.
Advanced Enclosure Design

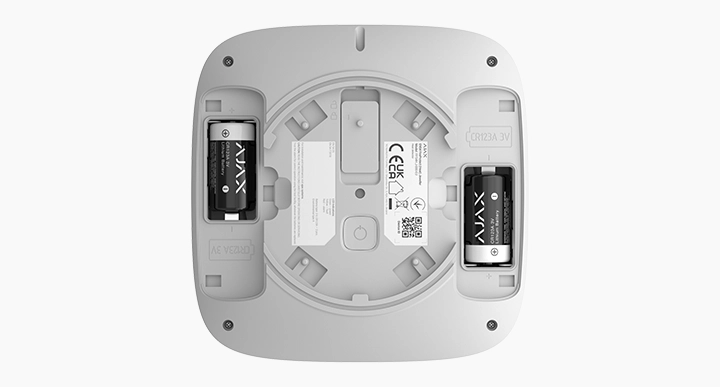

The detector includes a rotatable SmartBracket for easy 90° alignment during setup. Maintenance is simplified by a tool free battery compartment, while tamper protection and an optional mechanical lock ensure the device remains secure and operational over the long term.
Sophisticated Detection Technology

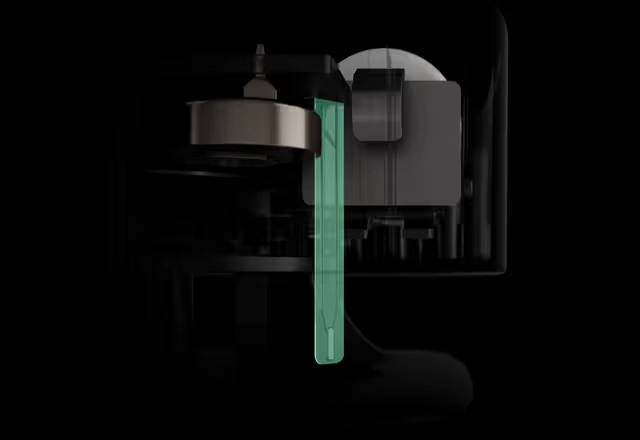

Featuring dual-thermistor technology, this detector provides comprehensive thermal monitoring by reacting to both sudden spikes and fixed temperature limits. By offering selectable modes; from A1R to CS and fixed temperature; via the Ajax app, the device can be precisely tuned for any installation.
This ensures a rapid, reliable response to everything from intense flaming fires to gradual heat accumulation.
Simplified Maintenance
Service management is streamlined through automated maintenance reports that track the real time status of every FireProtect Jeweller. By monitoring battery levels and communication strength via the PRO Desktop app, the system alerts you exactly when maintenance is required.
This data-driven approach eliminates unnecessary site visits while maintaining a verifiable digital trail of system performance.
Approvals
Compliant with EN54-5 and EN54-25.
Tech Specs
| Communication | Jeweller Communication Technology |
| Frequency Bands | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz |
| Maximum Effective Radiated Power (ERP) | 20mW |
| Radio Signal Modulation | GFSK |
| Radio Communication Range | 1700m |
| Encrypted Communication | All stored and transmitted data is protected by block encryption featuring a dynamic key. |
| Frequency Hopping | To prevent radio interference and jamming. |
| Sensitive Element | 2 × thermistor |
| Heat Sensor Modes | A1, A1R, A1S B, BR, BS C, CR, CS Fixed temperature |
| LED Indication | Red Yellow Green |
| Tamper Button | Fault notification when an attempt is made to remove the device from the mounting panel. |
| Lock For Smartbracket | To secure the device on the SmartBracket mounting panel |
| Protection Against Spoofing | Device Authentication |
| Connection Loss Detection | 36s |
| Battery | 2 × CR123A |
| Tool-Free Battery Replacement | To replace the batteries, open the lids of the battery compartments. |
| Reverse Polarity Protection | Prevents device damage if the batteries are put in incorrectly. |
| Recommended Battery Type | Huiderui CR123A 3V 1600mAh LiMnO₂ |
| Calculated Battery Life | 6 years |
| Dimensions ( W x H x D ) | 124mm × 124mm × 48mm |
| Weight | 265g |
| Operating Temperature Range | 0 °C to +50 °C |
| Operating Humidity | 80% |
| Protection Class | IP20 |
| Flammability Rating | UL 94 V-0 |
| Colour | Black White |
| Complete Set | EN54 FireProtect (Heat) Jeweller SmartBracket mounting panel 2 × CR123A battery (pre-installed) Installation kit Quick start guide |
| Revision | 1 |
