Road tunnels are critical transport links that support daily travel and economic activity. They often carry high volumes of traffic through enclosed environments where ventilation is limited. Fire detection in tunnels is essential to protect road users, minimise disruption, and support safe evacuation and emergency response. Early and reliable detection allows operators to respond quickly, reduce damage to infrastructure, and prevent incidents from escalating.
Risks
Tunnel environments introduce specific fire risks due to confined spaces and constant vehicle movement. Some of these include:
- Vehicle fires
- Cars, HGVs and buses can ignite due to engine faults, electrical issues or collisions. These fires can develop quickly and produce large amounts of heat and smoke.
- Fuel loads
- Vehicles carry fuel, oil and combustible materials. In the event of a fire, these can intensify heat release and accelerate fire growth.
- Traffic congestion
- Slow-moving or stationary traffic increases the likelihood of collisions and delays evacuation, which can worsen the impact of a fire.
- Confined environments
- Limited ventilation allows heat and smoke to build up rapidly, reducing visibility and creating hazardous conditions for occupants and emergency services.
- Infrastructure damage
- High temperatures can damage tunnel linings, cable systems and structural elements, leading to costly repairs and long-term closures.
Challenges
Detecting fire in tunnels requires systems that can operate reliably in harsh and complex conditions. Some challenges include:
- Airflow and ventilation
- Mechanical ventilation systems can move smoke away from the fire source, making it harder for traditional detectors to identify the exact location of an incident.
- Harsh environmental conditions
- Tunnels are exposed to dust, moisture, exhaust fumes and temperature variations, all of which can affect conventional detection technologies.
- Long distances
- Tunnels can extend for hundreds or thousands of metres. Detection systems must provide continuous coverage across the entire length.
- False alarm risk
- Vehicle emissions and environmental contaminants can trigger unwanted alarms if detection systems are not suited to the application.
- Rapid fire development
- Fires in tunnels can escalate quickly, so detection systems must respond without delay to support timely intervention.
FyreLine Resettable
FyreLine Resettable linear heat detection provides continuous temperature monitoring along the entire length of a cable. Unlike point detectors, which monitor specific locations, linear heat detection cables act as a sensor over their full length, making them ideal for long and narrow environments such as tunnels.
The resettable technology allows the system to return to normal operation after an alarm event, provided the cable has not been damaged. This reduces replacement costs and minimises downtime following incidents.
FyreLine Resettable systems are designed to deliver accurate and reliable heat detection, even in environments with high levels of contamination. They can identify both fixed temperature thresholds and rising heat conditions, enabling early warning of developing fires.
Approvals
EN 54-22 is a European standard for resettable linear heat detection systems. It defines performance, reliability and environmental requirements, ensuring consistent fire detection along the cable. Compliance demonstrates suitability for critical applications such as tunnels and other infrastructure environments.
UL 521 is a certification standard for heat detectors, including linear heat detection systems. It verifies performance, durability and reliability under defined conditions, ensuring the system can respond accurately to fire events in demanding environments such as tunnels and industrial infrastructure.
Design Considerations

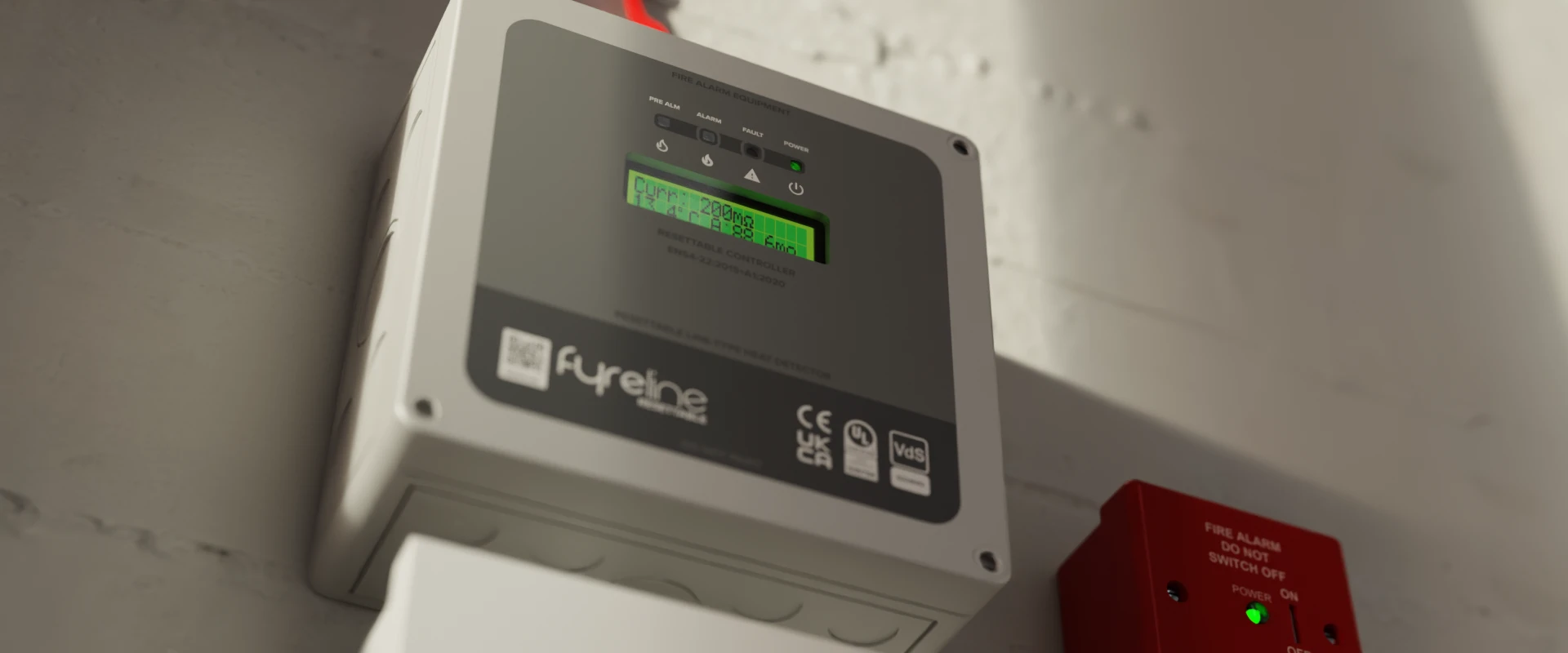

Controller Placement
The controller should be installed in a secure, accessible location, such as a service room or equipment cabinet within the tunnel infrastructure. This protects the unit from direct exposure to traffic, moisture and contaminants while allowing easy access for maintenance and monitoring. Positioning should also consider cable routing to ensure efficient system design and minimal signal loss.
Cable Placement
Linear heat detection cables should be installed along the length of the tunnel, typically above traffic lanes or along the soffit, where heat from a developing fire will rise. Additional runs may be installed near critical areas such as emergency bays, ventilation equipment, or cable trays to provide enhanced coverage.
Proper spacing and routing are essential to ensure consistent detection across the entire tunnel. Cables should be positioned to avoid mechanical damage while remaining close enough to potential fire sources to detect heat quickly.
Mounting Clips
The P-Clip provides a robust fixing point for linear heat detection cable, securing it to tunnel surfaces and infrastructure. It ensures consistent positioning, resists vibration, and supports long term reliability in harsh environments where stability is essential for accurate heat detection.
The J-Clip enables quick and consistent installation of linear heat detection cable, holding it securely in place while maintaining correct spacing. Its simple design allows efficient fitting along lengthy tunnel runs, supporting reliable performance and ease of maintenance.
J-Lock Clip provides a secure fixing for linear heat detection cable, preventing movement and maintaining consistent spacing. Its locking design improves retention in high vibration environments such as tunnels, helping ensure reliable performance and long-term stability of the detection system.

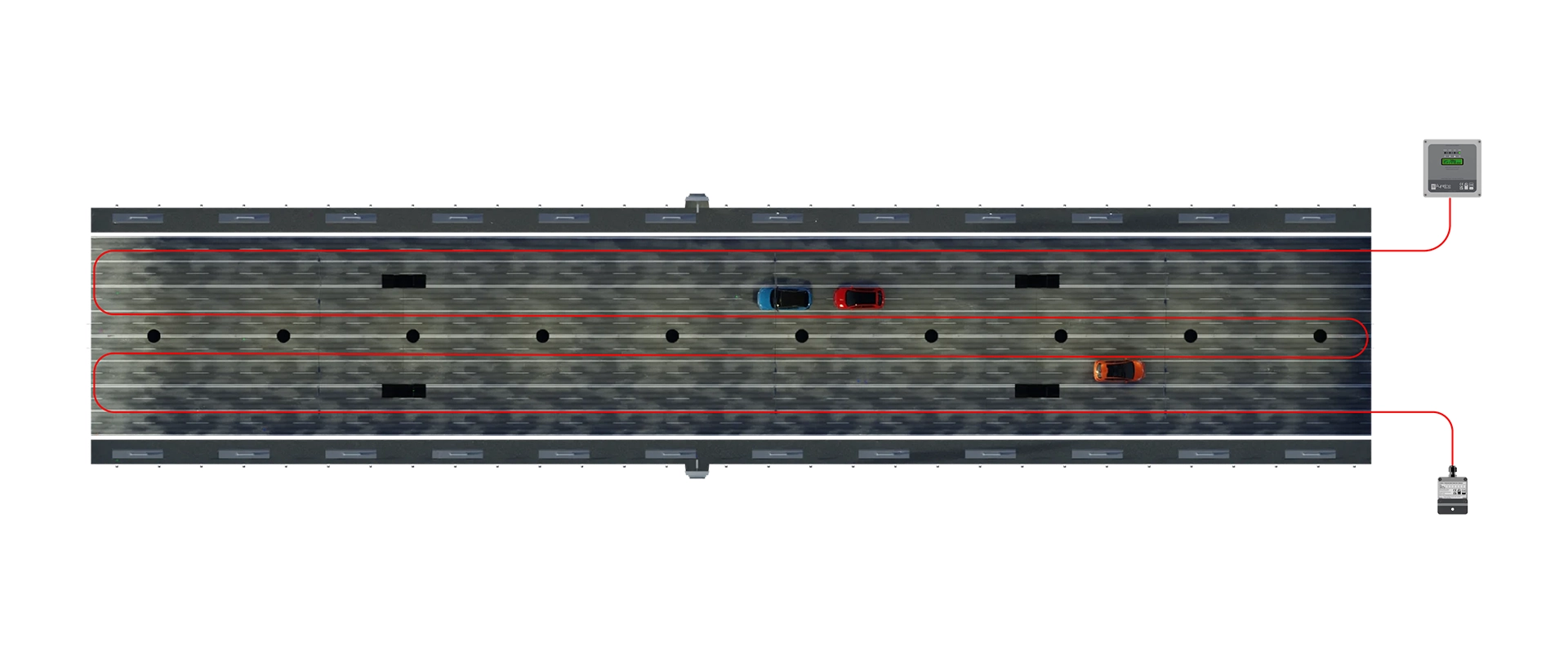

Typical Wiring Diagram
The wiring configuration should follow manufacturer guidelines to ensure reliable communication between the detection cable and the controller. This typically includes zoned layouts to help identify the location of an alarm quickly. Proper termination, segregation from other services, and adherence to installation standards are essential to maintain system integrity and simplify future maintenance.
