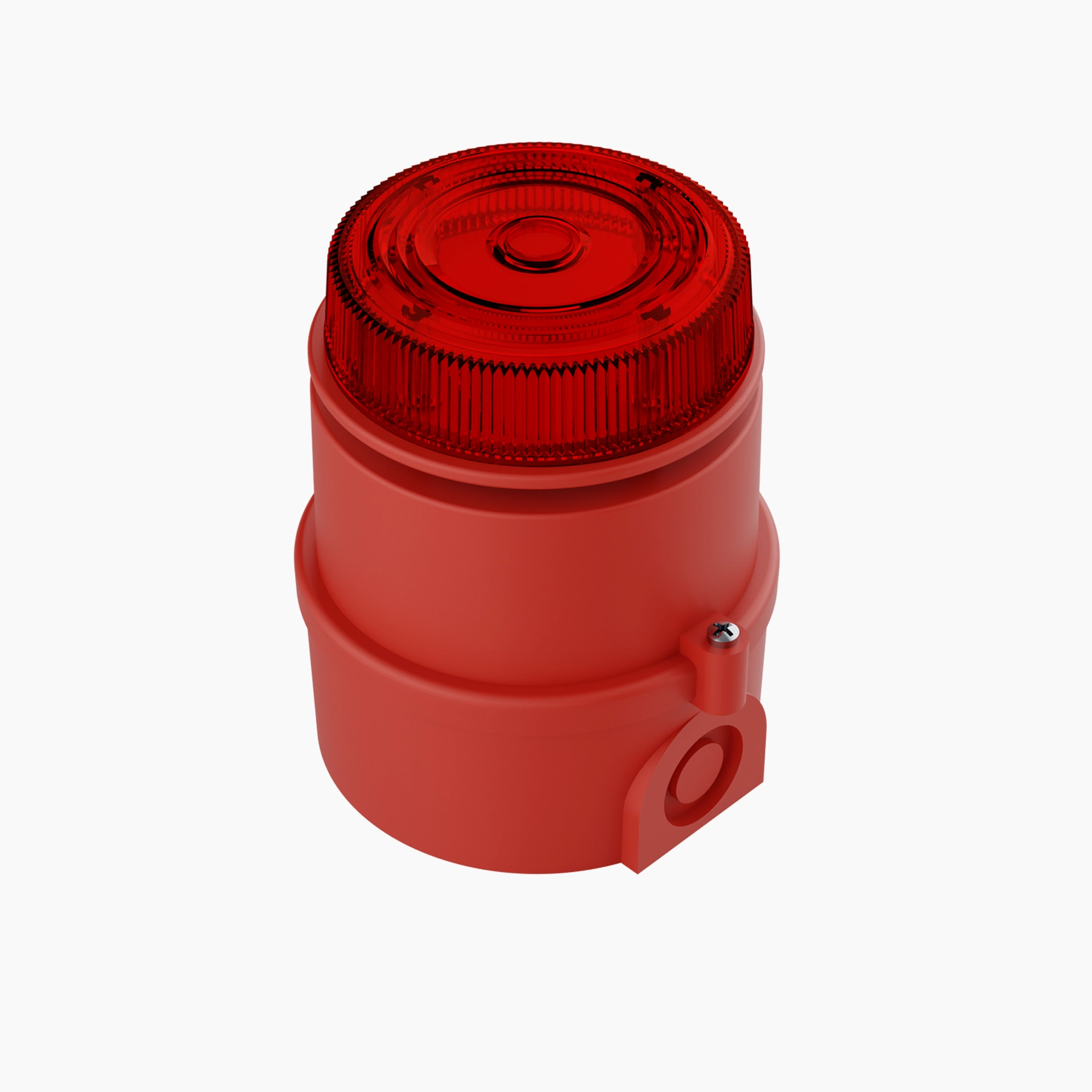

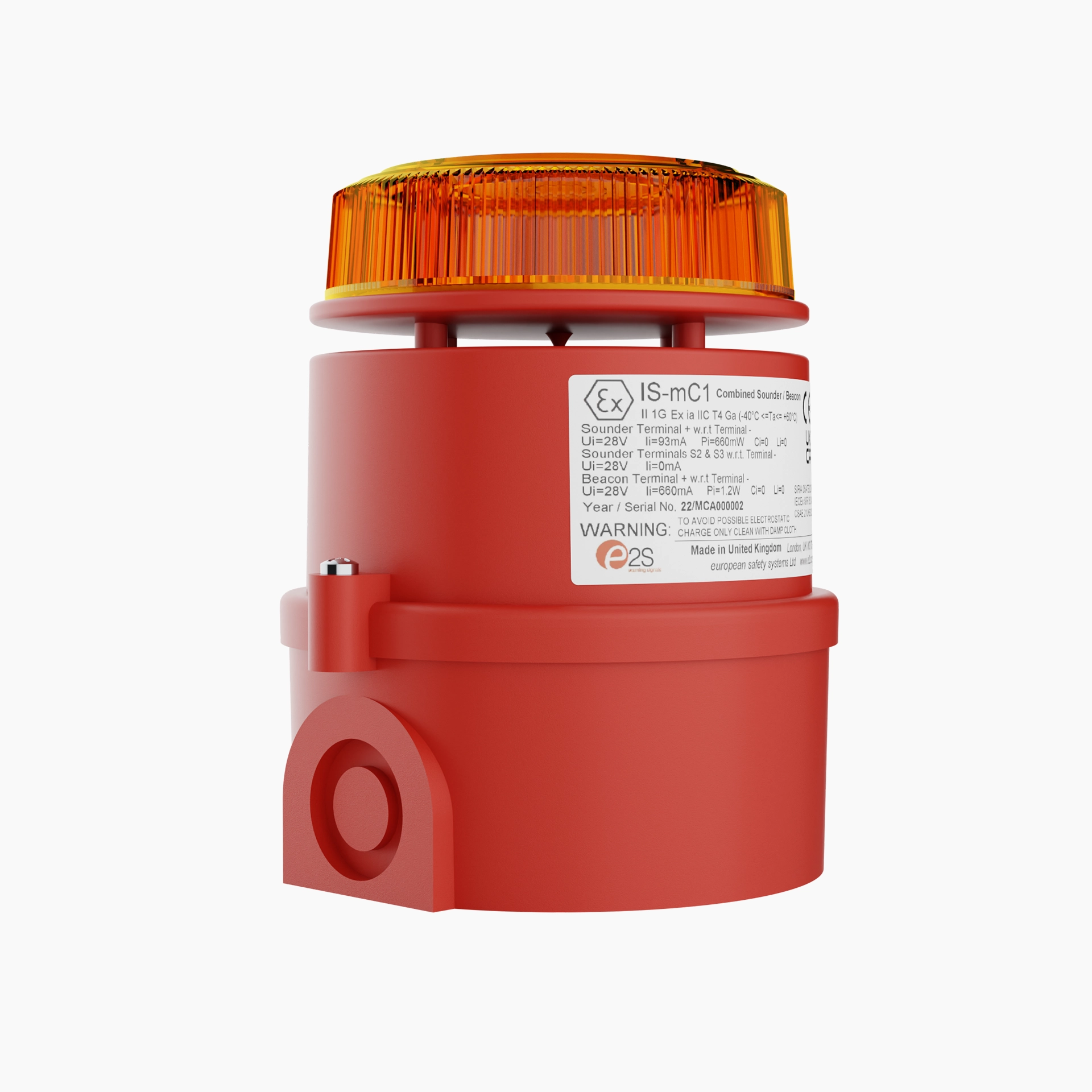

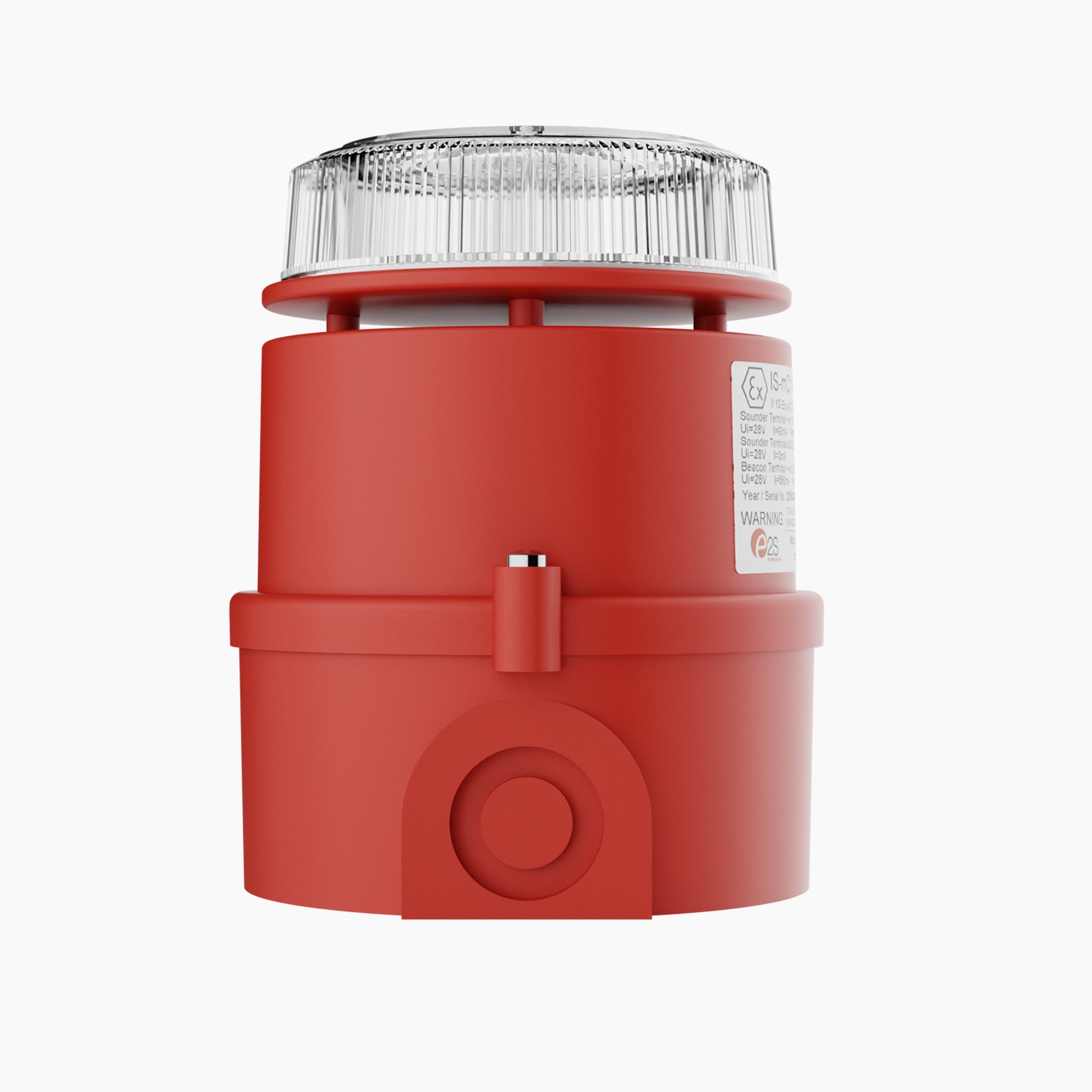

E2S IS-MC1 Intrinsically Safe Sounder & LED Beacon
E2S IS-MC1 Intrinsically Safe Sounder & LED Beacon
POA
- Combined audible and visual warning device with integrated LED beacon
- Compact design delivering up to 100 dB(A) output at 1 metre
- Intrinsically safe certified for hazardous areas
- Low current consumption
- IP65 rated enclosure with robust, flame-retardant construction
Learn about the E2S IS-MC1 Intrinsically Safe Sounder & LED Beacon in the
Eurofyre Knowledge Base
Learn about the E2S IS-MC1 Intrinsically Safe Sounder & LED Beacon in the
Knowledge BaseDescription
The E2S IS-MC1 Intrinsically Safe Sounder & LED Beacon is a compact combined audible and visual alarm designed for hazardous environments with explosive gases or dust. It delivers up to 100 dB(A) output alongside a bright LED beacon, ensuring clear warnings even in noisy areas or where hearing protection is used.
Engineered for intrinsically safe systems, it operates with low current draw and can be powered via a single barrier or isolator, simplifying installation. Its robust, IP65-rated enclosure and global certifications make it a reliable choice for industrial fire and process signalling.
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 22 × 22 × 22 cm |
| Application | Agricultural, Commercial, Education, Government, Hazardous Environments, Healthcare, Heritage, Hospitality, Industrial, Information Technology, Leisure, Office, Public Buildings, Residential, Retail, Transport |
| Approval Body | CE, EAC, Ex, FM, IECx, UKCA |
| Brand | |
| Cable Entries | 2 |
| Colour | Red |
| Country of Origin | United Kingdom |
| Environment | Indoors, Outdoors, Harsh |
| HS Code | 8531109500 |
| Input Voltage | 24VDC |
| IP Rating | IP65 |
| Material | ABS |
| Product | Wired Sounder VID |
| Protocol | Open Protocol |
| Sound Output | 100dBm |
| Standards | ATEX, IECEx |
| System | Fire Detection |
| System Category | Conventional |
| Wiring | Radial |
| Unit | Piece |
| Flash Colour | Amber, Blue, Clear, Green, Red |
| Indication | LED |
| Kind | Ceiling, Wall |
